Products

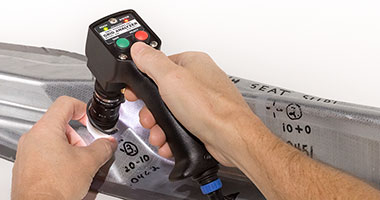

Grid Analyzer Model 200U
$13,900 USD
- Grid Analyzer with lens assembly for 0.1 inch (2.0mm) grids
- Automated strain and stress analysis using hollow circle and square grids
- Measurement precision of 0.005 true strain (0.5% engineering units)
- Instantly evaluates deformation severity against the forming limit curve (FLC)
- Stresses are plotted on the stress limit curve (SLC)
- Deformation Browser
- Automatically calculates spring back, volume metric thickness and stresses
- Report pages with selectable points of interest
- Measurements can easily be exported to spreadsheets
- Stitching function to measure strain at fractures
Grid Analyzer Model 200P
$15,900 USD
- Same hardware and features as Model 200U
- PLUS Polka Dot Option for measuring a CGA equivalent deformation based on the grids defined by of 3 or 4 circular dots
Grid Analyzer Model 200S
$15,900 USD
- Same hardware and features as Model 200U
- PLUS SGA2x Option for measuring 1 mm square grids
Grid Analyzer Model 200X
$16,900 USD
- Same hardware and features as Model 200U
- PLUS Polka Dot Option for measuring Polka Dot grids
- PLUS SGA2x Option for measuring 1 mm square grids
