Grid Analyzers

Our most poplular Grid Analyzer is Model 200U.

Products and Parts

Software is included with Grid Analyzers.

circle grid analysis,forming limit diagram, FLC,forming severity,surface strain circle grid analysis,forming limit diagram, FLC,forming severity,surface strain,deformation;tool and die,stress limit diagram, forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,square grid analysis,rolling direction,strain of sheet metal forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,rolling direction,strain of sheet metal,analysis of deformation,strain analysis report forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,rolling direction,strain of sheet metal,analysis of deformation,strain analysis report,Thinning ReportIncremental Grid Analysis,forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,rolling direction,strain of sheet metal,analysis of deformation,strain analysis report surface strain,stress limit diagram,strain of sheet metal,analysis of deformation,strain analysis report forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,rolling direction,strain of sheet metal,analysis of deformation,strain analysis report Polka Dot Grid,forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,rolling direction,strain of sheet metal,analysis of deformation,strain analysis report

Grid Analyzers

Automatic surface strain measurement

View Page

Circle Grid Analysis

Automatic hollow circle grid measurement with manual override

View Page

Square Grid Analysis

Automatic hollow sqaure grid measurement with manual override

View Page

Customary Report

Customary report including all measured strains, date and time stamp, FLD, material data and more...

View Page

Thinning Report

FLC expressed in the major-minor strains or thickness -minor strains coordinates

View Page

Incemental Grid Analysist

Customary report including all measured strain date, time stamp, FLD and material data

View Page

Fracture Stiching

Stitching function allows measurement of the fracture strains

View Page

Deformation Browser

Our unique Deformation Browser software tool designed for die tryout applications

View Page

Polka Dot Grid

The Polka Dot grid option provide a quick and accurate single grid element measurement of grids used by some 3D systems.

View Page
circle grid analysis,forming limit diagram, FLC,forming severity,surface strain circle grid analysis,forming limit diagram, FLC,forming severity,surface strain,deformation;tool and die,stress limit diagram, forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,square grid analysis,rolling direction,strain of sheet metal Incremental Grid Analysis,forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,rolling direction,strain of sheet metal,analysis of deformation,strain analysis report surface strain,stress limit diagram,strain of sheet metal,analysis of deformation,strain analysis report forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,rolling direction,strain of sheet metal,analysis of deformation,strain analysis report,Thinning Report forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,rolling direction,strain of sheet metal,analysis of deformation,strain analysis report forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,rolling direction,strain of sheet metal,analysis of deformation,strain analysis report Polka Dot Grid,forming limit diagram, FLC,forming severity,surface strain,stress limit diagram,rolling direction,strain of sheet metal,analysis of deformation,strain analysis report
themed object
"Forming Measurement Tool Inovations"
get in touch

Grid Analyzers

Grid Analyzer Model 200U---------- $13,900 USD

Grid Analyzer Model 200U

  • Grid Analyzer with lens assembly for 0.1 inch (2.0mm) grids
  • Automated strain and stress analysis using hollow circle and square grids
  • Measurement precision of 0.005 true strain (0.5% engineering units)
  • Instantly evaluates deformation severity against the forming limit curve (FLC)
  • Stresses are plotted on the stress limit curve (SLC)
  • Deformation Browser
  • Automatically calculates spring back, volume metric thickness and stresses
  • Report pages with selectable points of interest
  • Measurements can easily be exported to spreadsheets
  • Stitching function to measure strain at fractures
  • Requires Microsoft Windows 7, 8.1 or 10. ( x32 or x64bit editions)

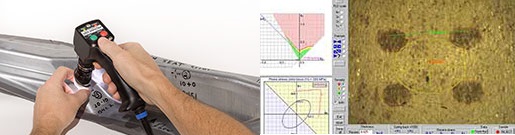

Grid Analyzer Model 200P----------$15,900 USD

Grid Analyzer Model 200U

  • Same hardware and features as Model 200U
  • PLUS Polka Dot Option for measuring a CGA equivalent deformation based on the grids defined by of 3 or 4 circular dots

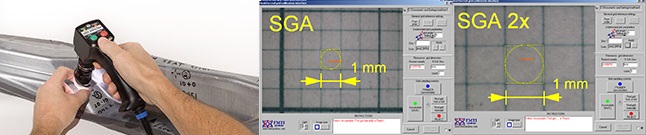

Grid Analyzer Model 200S----------$15,900 USD

Grid Analyzer Model 200U

  • Same hardware and features as Model 200U
  • PLUS SGA2x Option for measuring 1 mm square grids

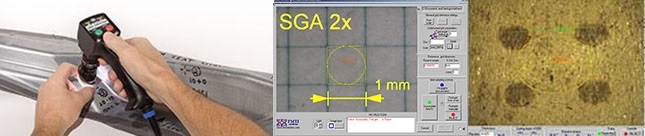

Grid Analyzer Model 200X----------$16,900 USD

Grid Analyzer Model 200U

  • Same hardware and features as Model 200U
  • PLUS Polka Dot Option for measuring Polka Dot grids
  • PLUS SGA2x Option for measuring 1 mm square grids

Parts

P/N - LA200-5--------- $499.00USD

  • Optional Len Assembly for 5mm.
  • designed for on model 200U and 200P

P/N - LA200-2--------- $499.00USD

  • Optional Len Assembly for 5mm.
  • designed for model 200U and 200P
  • Included with Analyzer

P/N - PX0441/4M50--------- $50.00USD

  • USB cable to connect Analyzer to computer

P/N - M2C9SB-174TPR-9I--------- $50.00USD

product image 6

  • Light cable connecting Analyzer with light

P/N - L200-2--------- $250.00USD

product image 6

  • Light assembly for 2 mm grids
